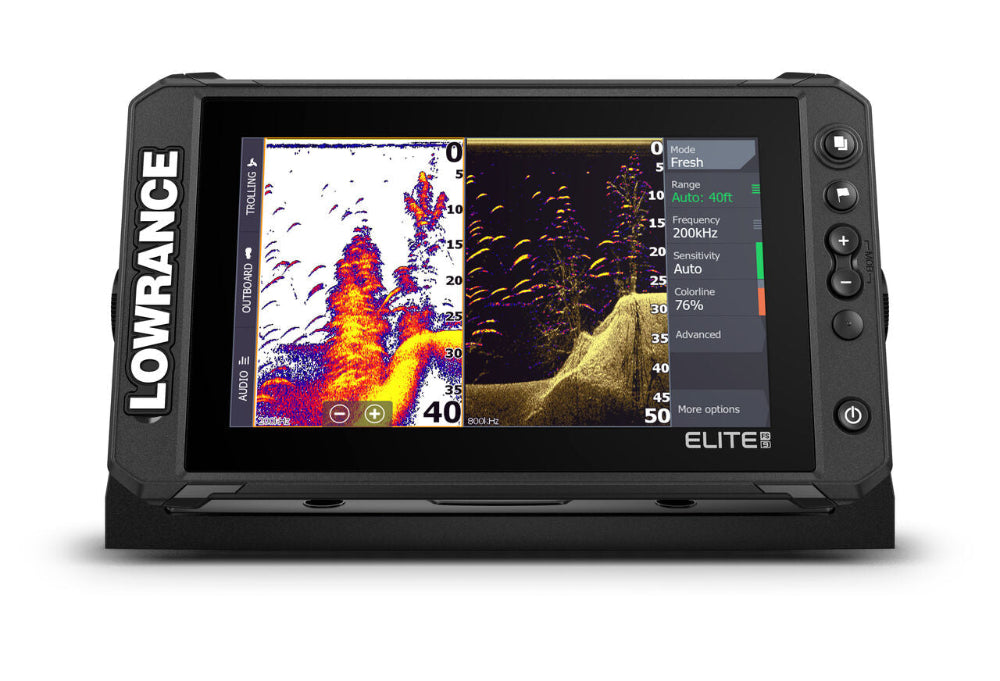

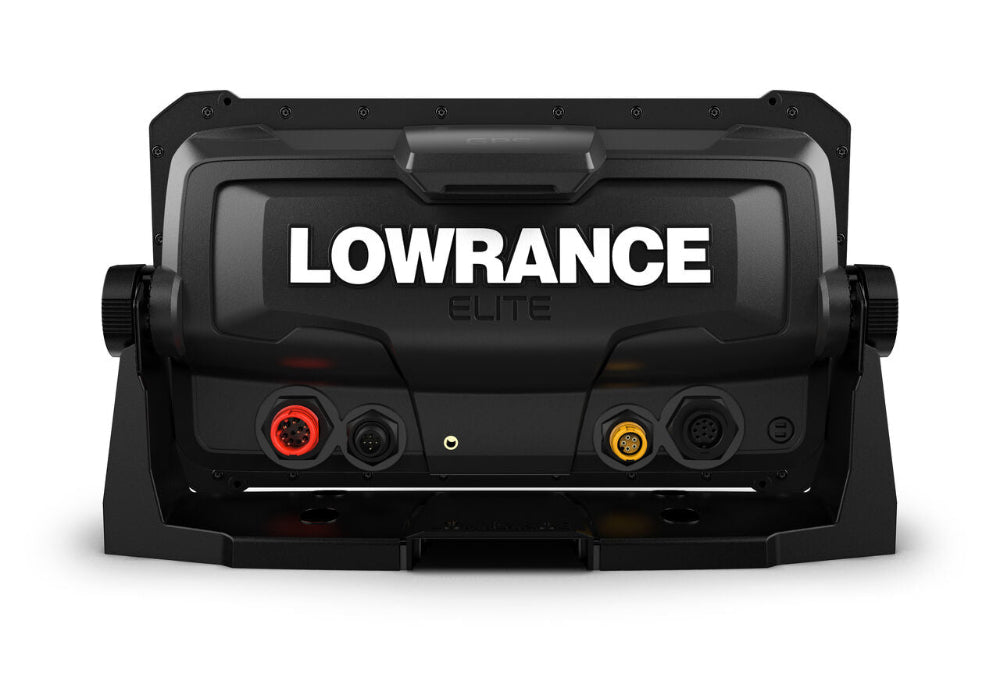

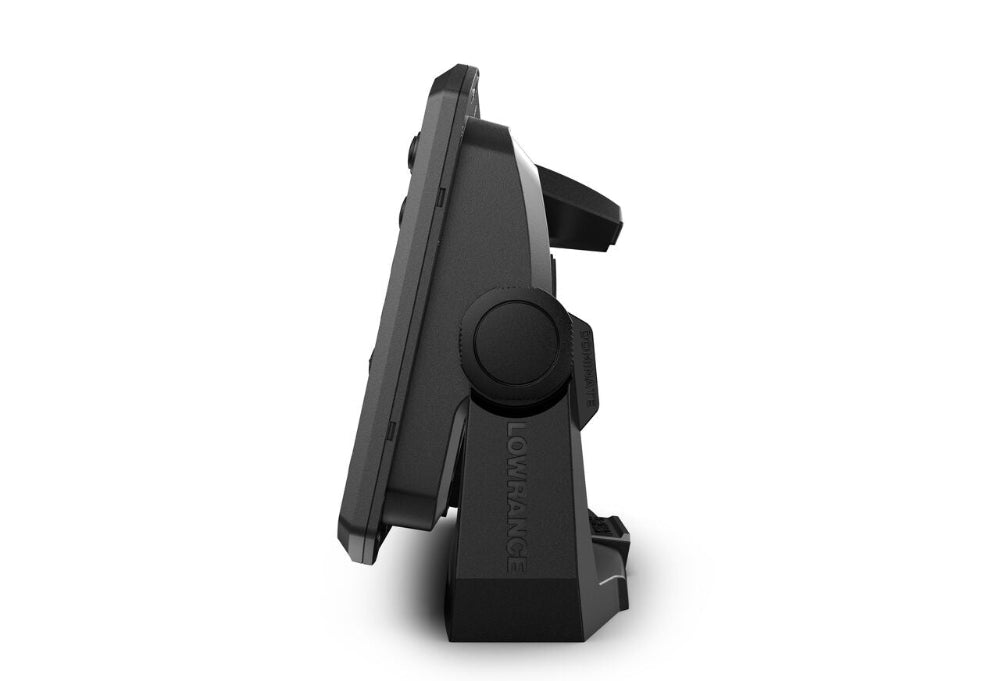

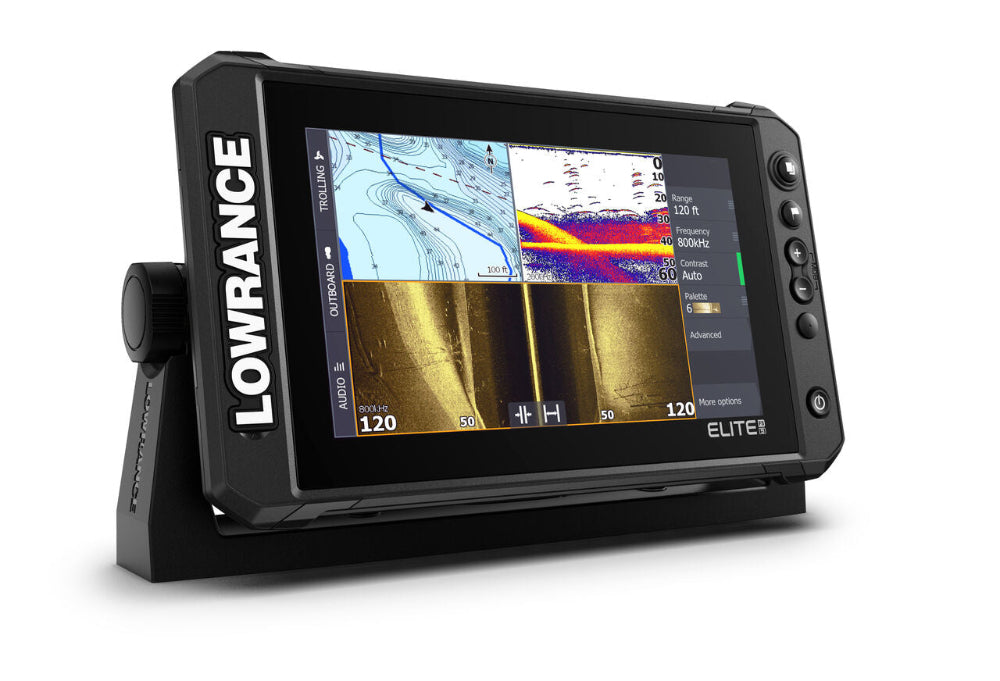

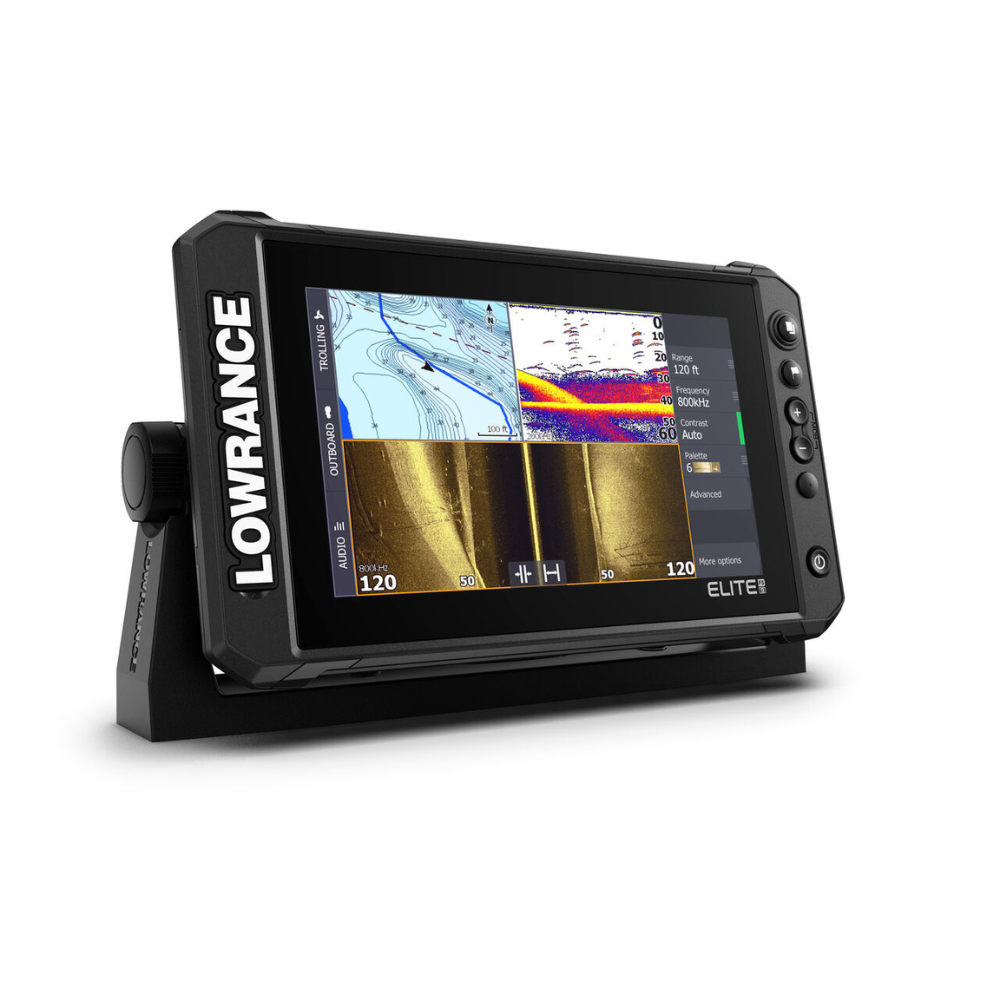

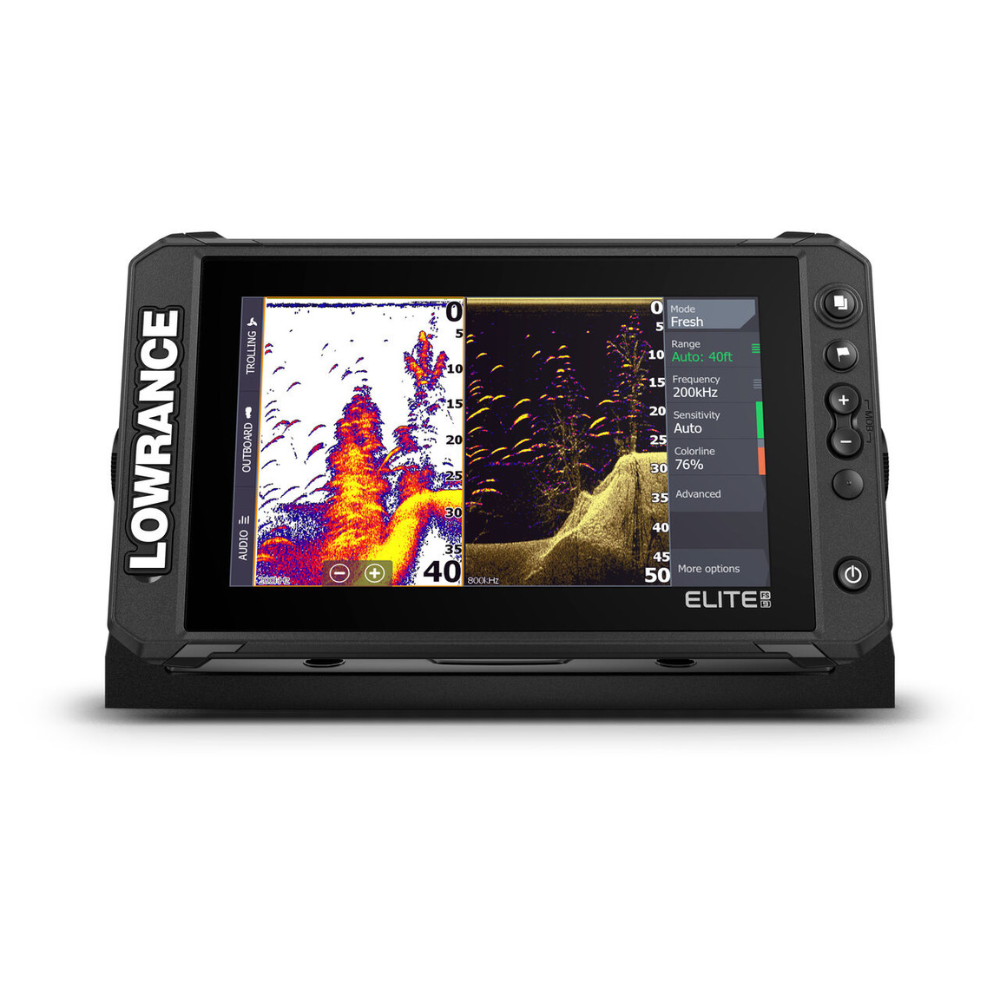

Lowrance Elite FS 9 AI 3-In-1 Aus NZ Chart
The new Lowrance Elite FS 9 AI 3-In-1 Aus NZ Chart, gives you access to the full line-up of Lowrance fishfinding tools - including ActiveTarget Live Sonar, Active Imaging and preloaded C-MAP AUS/NZ Enhanced Embedded charts to help you make the most of your time on the water.
The Elite Fishing System (FS) combines the power of Lowrance's proven and newest fish finding tools with a more affordable display that's easier to use and install. From integrated support for ActiveTarget live sonar and extreme high-resolution Active Imaging with Lowrance CHIRP sonar, SideScan and DownScan Imaging to preloaded C-MAP AUS/NZ Enhanced Embedded Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.
See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal. Get the best of CHIRP sonar and DownScan Imaging on one screen with FishReveal, a Lowrance exclusive that helps you easily recognise fish from structure and cover on high-detailed DownScan images.
Fish smarter when you know exactly what fish are doing in real time with ActiveTarget Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it's time to switch things up.
Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP Enhanced Embedded inland and coastal charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with Enhanced Embedded charts.
NOTE: Our workshop also offer an installation service for all your electronics and accessories. please follow this link for enquiries.
Lowrance Elite FS 9 AI 3-In-1 Aus NZ Chart Features:
ActiveTarget Live Sonar ready
Active Imaging 3-in-1 Transducer
FishReveal
Preloaded C-MAP Enhanced Embedded charts with high resolution inland and coastal coverage, plus mapping options including C-MAP, Navionics and more
C-MAP Easy Routing, Navionics Autorouting capability
C-MAP Genesis Live onscreen mapping
High-resolution multi-touch touchscreen
Integrated wireless, NMEA 2000 and Ethernet connectivity
Full touchscreen control of Power Pole? anchors and Ghost Trolling Motor
Lowrance Elite FS 9 AI 3-In-1 Aus NZ Chart Specifications:
Power Consumption max: 2.0A @ 13VDC with backlight on full
Power Consumption typical: 2.0A @ 13VDC with backlight on full
Power Consumption min: 2.09A @ 13VDC with backlight on full
SD Card Storage: 1 micro SD card up to 32GB
Ethernet Ports: 1 virtual ethernet port
Warranty Period: 1 Year + 4 additional years of upgrade options - totaling 5 years
Update rate: 10 Hz
GPS: 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
Shock Vibration: 100,000 cycles of 20 G
Compass Safe: 12" (300mm)
Screen Brightness: 1200 nits
Supply Voltage: 12v DC (10.8-17VDC)
GPS Receiver Channels: 16
NMEA 2000 Connectivity: 1x Micro-C
Weight: 2.20 lbs (1.00 kg)
Position Accuracy: 20m RMS
Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
Time to First Fix: 30s
Recommended Fuse Rating: 3A
Storage Temperature Range: 4°F to 140°F (-20°C to 60°C)
Radar compatibility: 4G (Broadband), 3G (Broadband), Halo20 (Pulse Compression Dome Radar), Halo20+ (Pulse Compression Dome Radar), Halo24 (Pulse Compression Dome Radar)
Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
Humidity: 60°C, 95% relative humidity (RH) for 18 hours
Viewing Angles: 80° top/bottom, 85° left/right
Display Resolution: 800 x 480
AIS: AIS Chart overlay. Target vessel details
Charts supported: C-MAP (MAX N, MAX N+), C-MAP Genesis, Navionics (Gold, NAV+ Platinum+),Insight (Pro and HD), Lowrance Regional Mapping Partners
Cartography included: C-MAP Contour + AUS/NZ (AUS/NZ models), Navionics basemap (AMER, AUS/NZ and ROW models)
Correction: DGPS, WAAS
Mounting Type: Gimbal Bracket or Dash Flush Mount
Bluetooth: Integrated
Sonar Compatibility: Integrated: CHIRP Broadband and Active Imaging DownScan, Active Imaging SideScan Compatible with: StructureScan
Item Connectivity WiFi: Internal 802.11b/g/n
Waterproofrating: IPX7 with card door closed
Autopilot: MotorGuide Xi5/Xi3 Trolling Motor *requires Motorguide PinPoint Gateway
Weather: None
Internal Storage: None
PC Connectivity: None
Video: None
Multimedia: None
Digital Switching: None
Backlight Colour: Pure White LED
Interface: Touchscreen Zoom +/-MOB = (+/- combined) Pages Waypoint Light/Power
What's in the box:
Lowrance Elite FS 9 Unit
Elite FS 9 Suncover
HDS-9 LIVE / Elite FS 9 Bracket
HDS/Elite/Hook/Mark Power Only Cable
FUSE-1 Set of 3 x 3-amp Fuses
Active Imaging 3-in-1 Transducer
Our premier marine workshop offer a complete installation service.
For a booking, enquiry or quote to install any accessory please click this link
https://finchaser.co.nz/pages/book-a-service
