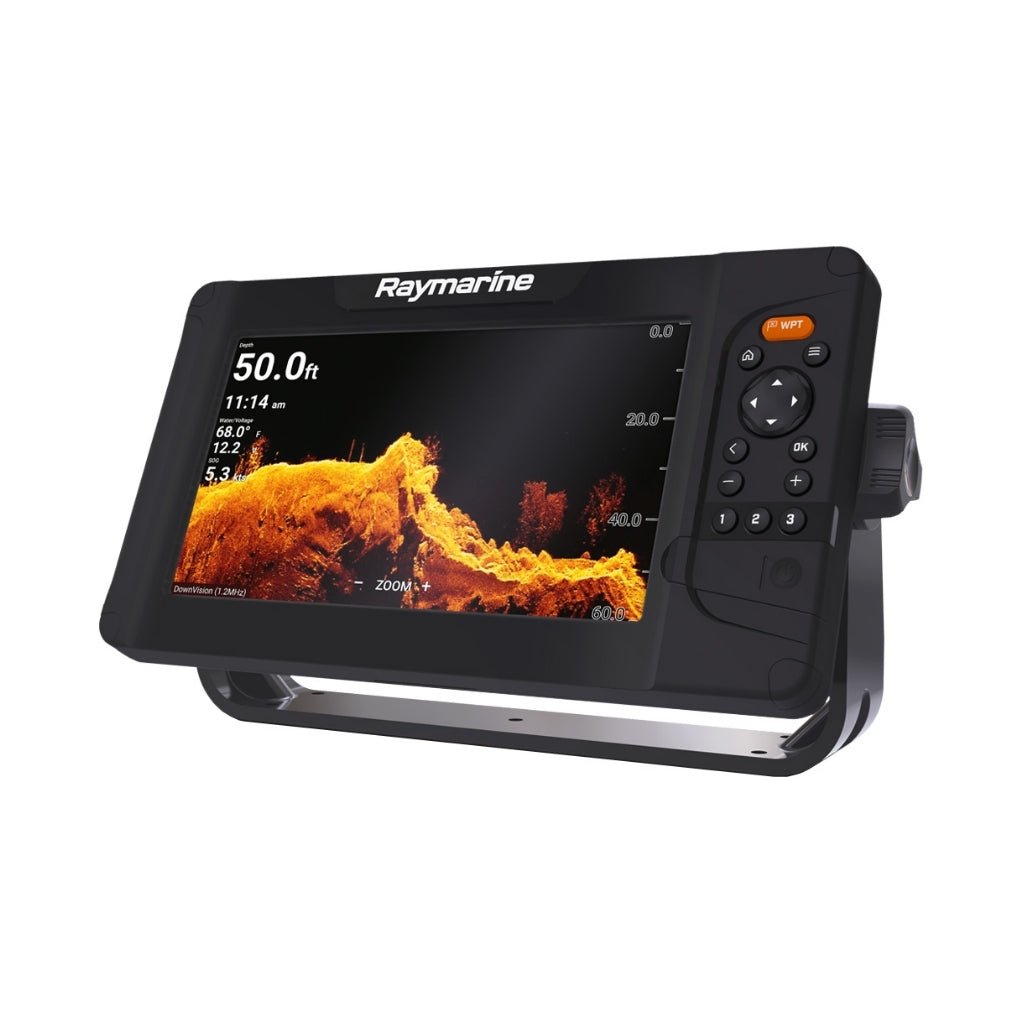

Raymarine Element 9HV HV-100 Transducer, Navionics Chart
Knowledge is power and the new Raymarine Element 9 CHIRP GPS/Fishfinder gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Element's HyperVision 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity.
Raymarine Element 9HV HV-100 Transducer, Navionics Chart Features:
Category-leading quad-core processor delivers fast chart redraw and continuous 3D rending while running a simple, easy-to-learn user interface.
Fast and accurate 10hz GPS/GNSS sensor
1.2 megahertz HyperVision sonar provides outstanding resolution up to 100' while 350kHz Down and SideVision delivers photo-like imaging up to 600'
Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes
An oversized waypoint key for quick and easy marking of your favourite locations
Three user-programmable quick keys to access your favourite pages with one button push
Live menus let you customize charts while seeing the navigation display change in real time
Safely navigate busy waterways with an optional Quantum wireless radar and AIS receiver
Connect with NMEA2000 compatible AIS, autopilot, engines, tanks, and VHF
Raymarine Element 9HV HV-100 Transducer, Navionics Chart Specifications:
Display Size: 9.0" Optically Bonded LCD
Display Resolution: 800 x 480 WVGA
Display Type: Non-Touch
Brightness: 1,500 nits
Viewing Angle: Top 50? / Bottom 60? / Left 70? / Right 70?
Physical
Overall Dimensions: 240 x 135 62mm (9.5 x 5.3 x 2.4 inches)
Product Weight: 3.0lbs
Water Ingress Protection: IPX6 and IPX7
Operating Temperature Range: -25?C to + 55?C (-13?F to 131?F)
Storage Temperature Range: -30?C to +70?C (-22?F to 158?F)
Power
Voltage: 12V DC (8V to 16V DC)
Power Consumption (max 12V DC): 15 Watts
Sensors
GNSS / GPS: Built-in GNSS Receiver: GPS/GLONASS
Sonar Type (Built-in): Built-in CHIRP Sonar, DownVision (Standard and Hyper), SideVision (Standard and Hyper), RealVision 3D (Standard and Hyper)
Sonar Connection: 15 pin HyperVision type connector
Sonar Depth:
CHIRP Sonar = 274m (900 feet)
DownVision Standard = 183m (600 feet) DownVision Hyper = 30m (100 feet)
SideVision Standard = 91m (300 feet) SideVision Hyper = 30m (100 feet)
RealVision 3D Standard = 91m (300 feet) RealVision 3D Hyper = 30m (100 feet)
Networking
Ethernet: N/A
NMEA0183: N/A
NMEA2000: 1 x NMEA2000 port (DeviceNet microC)
Supported NMEA2000 Networking: INPUT: NMEA2000 Compatible Engines (Max 2) NMEA2000 Compatible Tank Sensors (Max 4) Heading Sensor (for Chart Stabilisation)
OUTPUT: GPS (for VHF Distress and DSC)
SeaTalkng: Requires A06045 DeviceNet female (F) adapter cable - 400mm
USB: N/A
Wi-Fi: WiFi - 802.11 b / g / n
BlueTooth: Bluetooth 4.0 + Low Energy + Power Class 1.5
Other
Cartography:
Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.
Tides & Currents: Requires LightHouse LNC2, Navionics or C-MAP
Waypoint / Routes / Tracks: 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
Internal Memory: 8GB Solid State
External Memory: 1 x microSD slots - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)
What's in the box:
Element GPS/Fishfinder Unit
Navionics NZ/AU Chart Card
Trunnion bracket with mounting hardware
Surface mount kit with mounting hardware
Sun cover
Power / NMEA2000 1.5m cable
Documentation pack
Cartography (optional)

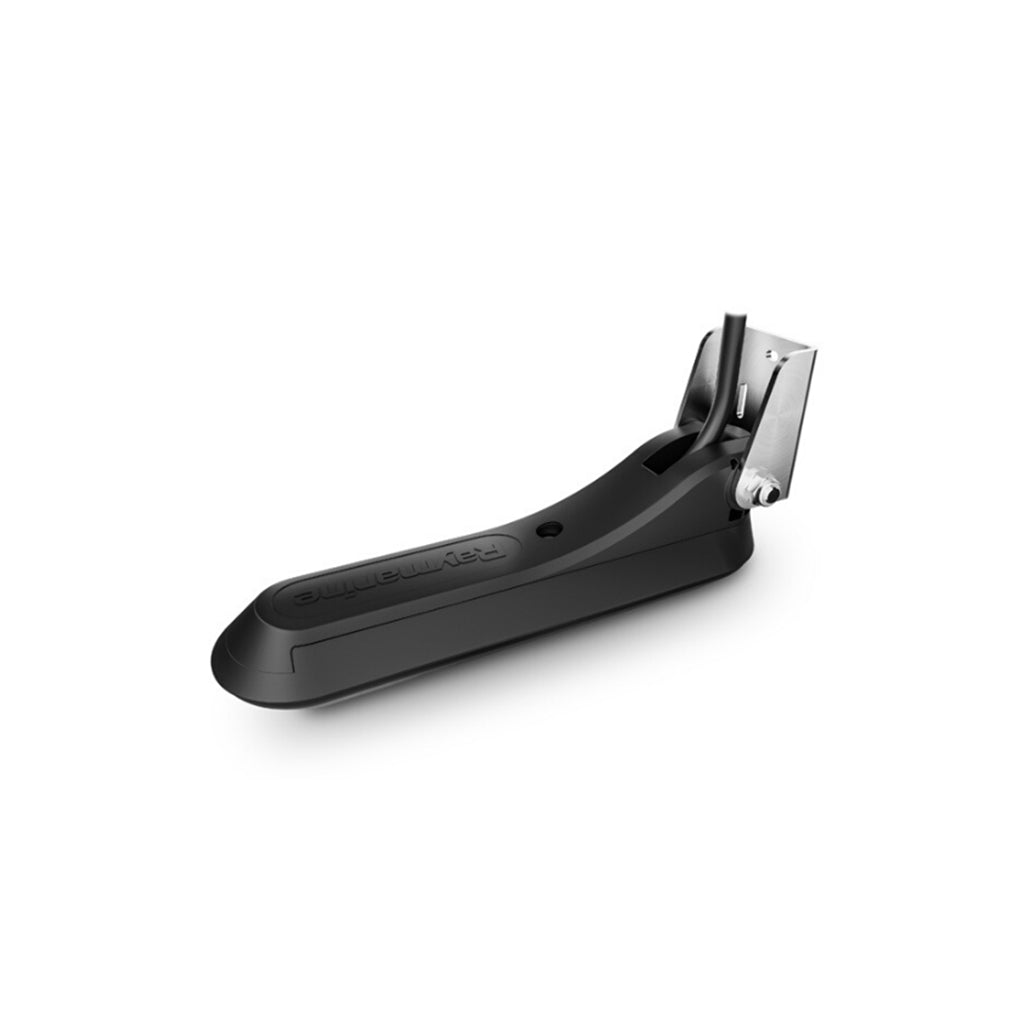

HV-100 Transucer with 6m cable
Transom bracket with mounting hardware
P-clips with mounting hardware (x5)
Escutcheon plate with mounting hardware
