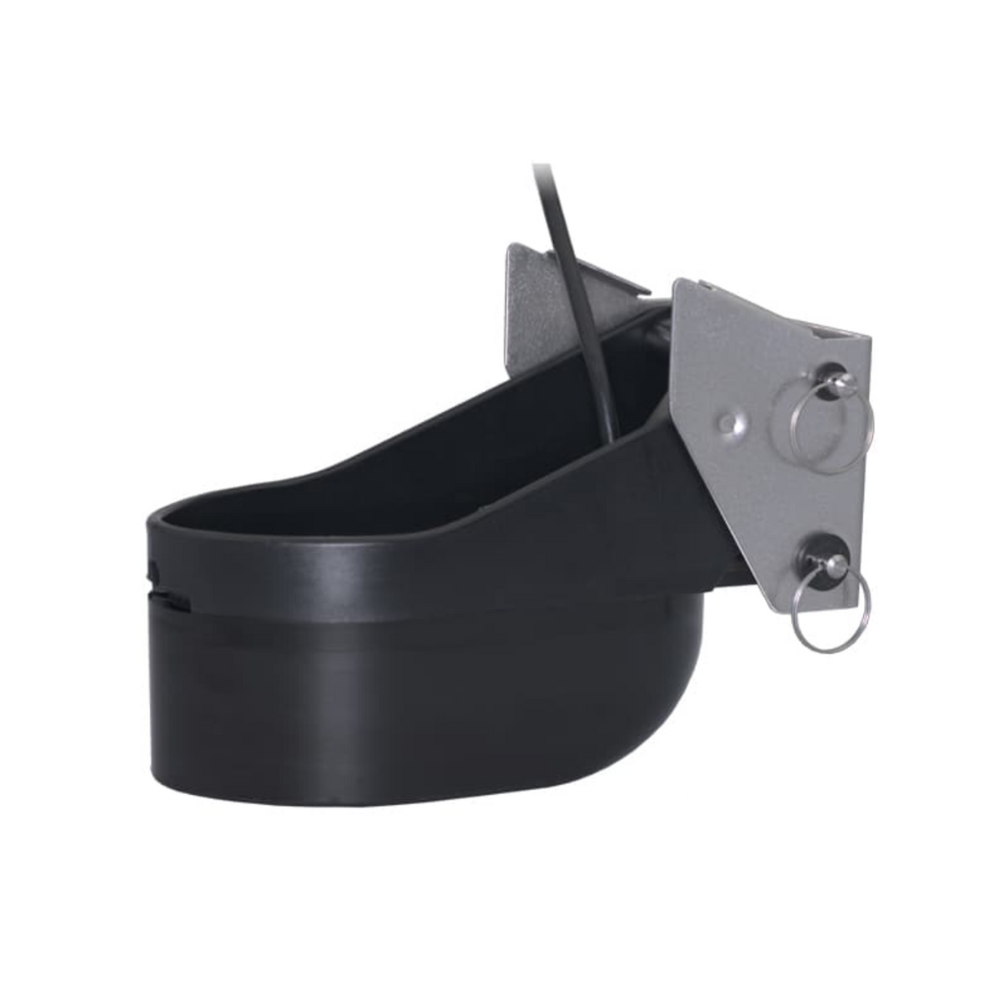

Lowrance/Simrad TM260 Airmar 1KW 50/200 KHZ 9 Pin Transducer
The Lowrance / Simrad Tm260 1Kw 50/200Khz Transducer 9 Pin is a urethane, Transom Mounted 50/200 kHz Broadband Transducer and is ideal for smaller sportfishing 6mtr and up, fishing in depths down to 3000ft.
The large, 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260’s rugged mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).
Lowrance/Simrad Tm260 1Kw 50/200Khz Transducer 9 Pin Specifications:
Dimensions W x H x D - 108 x 191 x 74 mm (W, L, D) (4.3 x 7.5 x 2.9") without bracket
Weight - 4 kg (8.9 lb)
Frequencies - 50/200 kHz
Max Depth - 610m (2000 ft) depending on sonar
Mounting Type - Transom Mount
