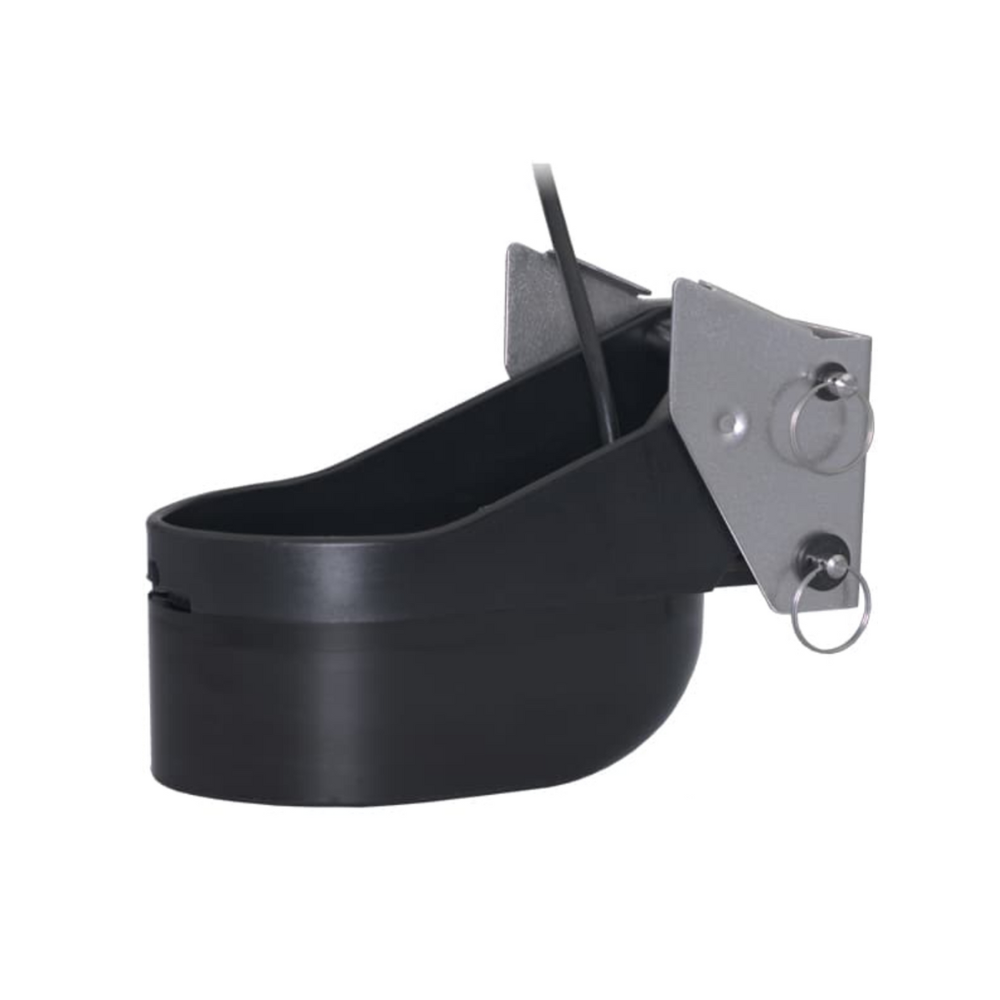

Raymarine TM258 1KW Transom Mount Transducer
The Raymarine TM258 1KW Transom Mount Transducer is an excellent, economical 1kW, dual frequency transducer for anglers. Its unique four ceramic element construction produces an elliptical beam pattern that covers a wider area and produces excellent target resolution. The combination of 200 kHz and 50 kHz make it a great option for both shallow and deep-water use. The TM258 is an excellent trolling sonar, that can still perform at speeds of up to 30 knots.
Raymarine TM258 1KW Transom Mount Transducer Features:
Depth and fast-response water-temperature sensor
1kW power for performance to 2200' (670m)
Recommended boat size: above 30' (9m)
Stainless steel kick-up assembly locks in the "up" position and will not damage the transom
Interfaces to any compatible 600W or 1KW Sounder with DSM/CP370 connector.
Raymarine TM258 1KW Transom Mount Transducer Specs:
Style: Transom
Transom angle: 3° to 21°
Hull Deadrise: up to 28°
Cable Length: 30' (9m)
Boat Length: 32' (10m) and up
Monitors: Depth and temperature
Material: Urethane
Transmit Power: 1kW
Frequency: 50/200kHz
Depth: 50kHz: 2,200' (647m) 200kHz: 1000' (294m)
Beam width: 50kHz: 21° 200kHz: 5°
